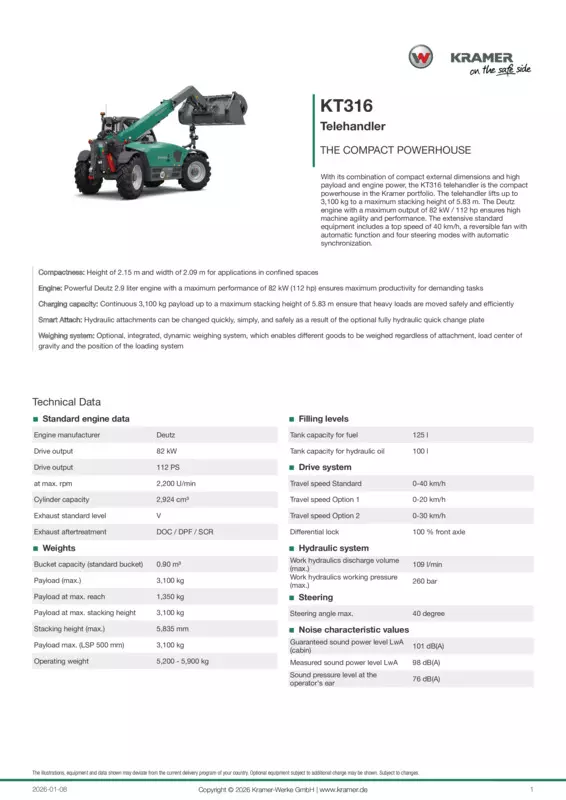

Telehandlers KT316 - THE COMPACT POWERHOUSE
With its combination of compact external dimensions and high payload and engine power, the KT316 telehandler is the compact powerhouse in the Kramer portfolio. The telehandler lifts up to 3,100 kg to a maximum stacking height of 5.83 m. The Deutz engine with a maximum output of 82 kW / 112 hp ensures high machine agility and performance. The extensive standard equipment includes a top speed of 40 km/h, a reversible fan with automatic function and four steering modes with automatic synchronization.
Telehandlers KT316
Benefits at a glance
- Compactness: Height of 2.15 m and width of 2.09 m for applications in confined spaces
- Engine: Powerful Deutz 2.9 liter engine with a maximum performance of 82 kW (112 hp) ensures maximum productivity for demanding tasks
- Charging capacity: Continuous 3,100 kg payload up to a maximum stacking height of 5.83 m ensure that heavy loads are moved safely and efficiently
- Smart Attach: Hydraulic attachments can be changed quickly, simply, and safely as a result of the optional fully hydraulic quick change plate
- Weighing system: Optional, integrated, dynamic weighing system, which enables different goods to be weighed regardless of attachment, load center of gravity and the position of the loading system
Highlights
7" LCD display
- All relevant machine data at a glance summarised on the display
- Operating and setting the machine’s parameters easily and intuitively using the jog dial
- Safe jog dial operation possible, even when driving
Smart Attach (fully hydraulic quickhitch system)
- Coupling of hydraulically driven attachments with the automatic connection of the hydraulic circuit, without the need to get out and in
- Increased productivity as a result of cost and time savings
- Attachments changed within seconds for full flexibility
Integrated dynamic weighing system
- Quick and easy weighing regardless of the load's center of gravity, the attachment used and the position of the loading system
- Full utilization of the capacity of transport vehicles and safe working, as overloading of trailers and machines is avoided
- Intuitive operation thanks to complete integration into the machine's operating concept
Easy maintenance access
- Easy access to the engine compartment thanks to the wide-opening hood
- Optimum accessibility of all important components for checking fill levels
- Quick implementation of service work thanks to vertically mounted filters and additional maintenance openings
Up to 40 km/h driving speed
- Maximum speed of 40 km/h for fast and efficient relocation
- Stepless acceleration from 0 to 40 km/h without shifting gears for maximum driving comfort
Further Highlights
Height adjustable trailer hitch at the rear of the vehicle
- Easy adjustment of the coupling height to the trailer
- Maximum flexibility due to different coupling inserts
Crab steering
- Easy maneuvering in confined spaces
- Gentle driving on sensitive surfaces
- Simple control in combination with special attachments
Combined brake-inch pedal
- Simple and safe operation thanks to combined brake-inch pedal
- Wear-free regulation of the working speed even at high engine speeds
- Maximum working hydraulics even at low working speeds
Jog function
- Complete dumping of adhering material due to the jogging function
- Relief for the driver due to automatic function
- Protection of machine components through defined movements
Adjustable steering column
- Setting an ergonomically favorable position for each driver
- More space for getting in and out of the vehicle by folding away the steering wheel
Automatic central lubrication system
- Longer service life and value retention of the machine thanks to automatic lubrication of all lubrication points
- Time and cost savings thanks to low and bundled maintenance of the centralized lubrication system
- Optimum lubrication thanks to adjustable time intervals and grease quantities
Convenient entry and exit
- Comfortable entry and exit thanks to a cut-out in the cabin floor and steps arranged like stairs
- Increased safety for the driver
Reversing camera with automatic activation
- Best possible visibility in the rear area when maneuvering in tight spaces or coupling trailers
- Full all-round visibility is maintained as the camera image is integrated into the existing display
- Easy to use thanks to familiar automatic activation when reverse gear is engaged
All-wheel steering
- High stability even at full steering lock thanks to the undivided frame
- Maximum maneuverability thanks to steering angles of up to 40° on both the front and rear axles
- Consistent payload independent of the steering angle for constant leverage ratios
Front axle steering
- Safe and familiar road travel at high speed
- Precise guidance of special attachments
- Easy maneuvering in trailer mode
-
Please note that the product range may vary depending on the country.
-
The technical data of the products may vary accordingly with the selection of different options.
