With its 10 metre stacking height, the KT3610 easily reaches all straw bales.

Telehandler KT3610 - Aiming high with compact dimensions

The vehicle has a length (without bucket) of only 5.03 meters and is 2.28 meters wide. This puts the vehicle in the "compact all-rounder" class, which also includes the successful KT407 model. With an operating weight of 8,200 kg (option-dependent) and the combination of compact dimensions and 3-part telescopic arm, the KT3610 achieves a maximum stacking height of 9.50 m and a maximum payload of 3.6 t.

Telehandler KT3610

Benefits at a glance

  • Cab heights: Overall height of just 2.31 m with standard cab and 24-inch tyres as standard, optionally with a cab with increased height of 18 cm
  • Smart Handling: Due to the intelligent overload system there are no loads in the overload area and, as a result, the machine does not tip over lengthwise
  • Drive system: Sensitive working and high pushing power as a result of the variable, hydrostatic drive system
  • Ready for use: Robustness and reliability in combination with lift height and reach are perfect for the handling of bales.
  • Visibility: Perfect view of the working area due to the steeply sloping engine bonnet

Highlights

Two selectable cabin heights

  • Improved all-round visibility for the driver thanks to the elevated cab
  • Low cab variant for applications with limited clearance heights
Two different cab heights, for example on the telehandler KT357.

Automatic bucket return

  • The automatic bucket return is ideal for loading work that repeatedly necessitates a particular bucket position
  • The desired position can be individually set and stored
  • Safe and fatigue-free working as a result of the automatic motion processes. The charge cycles are becoming clearly more efficient
The automatic bucket return of the 8 series from Kramer.

7" LCD display

  • All relevant machine data at a glance summarised on the display
  • Operating and setting the machine’s parameters easily and intuitively using the jog dial
  • Safe jog dial operation possible, even when driving
Kramer telehandlers have a modern control panel with 7-inch LCD display.

360° all-round visibility

  • Excellent 360° visibility due to the large glazed areas and narrow cabin pillars
  • Panoramic front windscreen for an ideal view of the attachment
  • High degree of work quality and safety as the work area can be optimally viewed
Kramer telehandlers have 360° all-round visibility.

EC tractor approval

  • Application as a towing vehicle for trailer transport with material
  • No restrictions regarding the loads alongside the separate attachments
  • It is possible to travel on the road with an attachment subject to the legal provisions
EC Certificate of Conformity for tractorsl for public road transport

Further Highlights

Product inquiry

Downloads

The brochure of the large telehandlers of Kramer.

Brochure Kramer telehandlers up to 9.50 m stacking height KT356/KT307/KT357/KT407/KT3610/KT457/KT557/KT559

Download
The product overview of Kramer machines for the agricultural industry.

Brochure Product Overview

Download

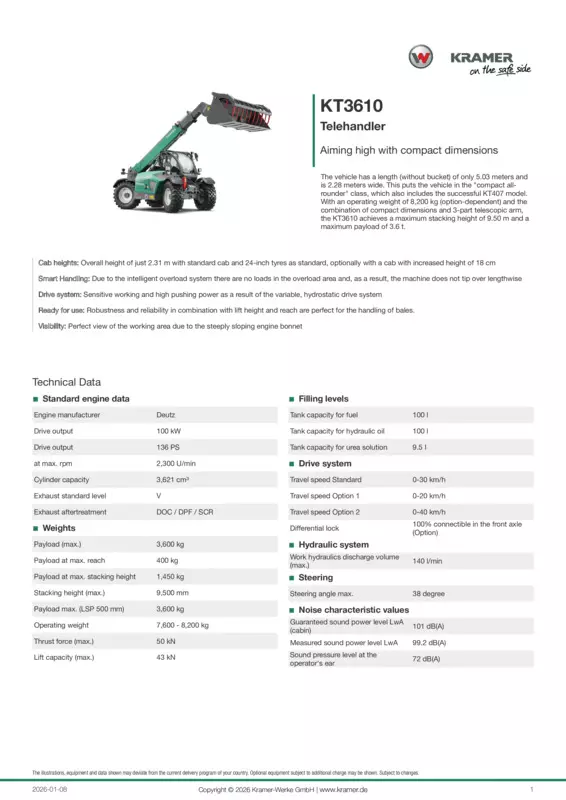

PI Sheet KT3610

Download
