Telehandler KT356 - The intelligent all-rounder

The intelligent Kramer telehandler KT356 impresses with a high level of safety and flexibility. The machine has a payload of 3.5 metric tons and a stacking height of 6 m. Its engine and the Load Sensing hydraulics with a maximum 140 lpm provide a high handling capacity for a great variety of applications. The manoverability of the telehandler and the Kramer quick change plate provide maximum flexibility in daily application.

Telehandler KT356

Loading system: With load stabilizer and end-position cushioning in all cylinders
All-round visibility: The spacious cabin with a window area of 3.6 m³ provides a perfect overview on all sides
EquipCare:&amp;#160;The telematics solution installed as standard provides all the machine's figures and data at a glance
Easy cabin access: Convenient entry and exit thanks to a recess in the booth floor and stair-like entry steps
Kramer quick release plate: Easy change of attachments, four connection points ensure the optimum fit of the attachment

A rendering of the Kramer telehandler KT356 in a studio.

Highlights

360° visibility

Excellent 360° visibility thanks to large glass panels and narrow cab pillars
Panoramic front windshield for an optimal view of the attachment

Kramer telehandlers have 360° all-round visibility.

Color-coded toggle switch for hydraulic, electric, driving and safety functions.

Quick operator familiarization when switching drivers
Increased safety, as the risk of mistakenly confusing switches is minimized
Cross-model operating concept for easy fleet management

7-inch LCD display showing all important operating data and machine settings. Operation is via the jog dial control.

Relevant machine data summarized at a glance on the display
Operation and setting of machine parameters simple and intuitive via the jog dial
Jog dial operation possible while driving

Operation and setting of the machine parameters simple and intuitive via the jog dial

EC tractor approval for public road transport

Use as towing vehicle with up to 20 t Trailer load
No restrictions regarding the load apart from the vehicle's own attachments
Road travel with attachments is possible in compliance with legal requirements

EC Certificate of Conformity for tractorsl for public road transport

Easy maintenance access

Easy access to the engine compartment thanks to the wide-opening engine hood
Optimal accessibility of all important components for checking fill levels
Quick implementation of service work due to upright-mounted filters and additional maintenance openings

Easy access to the engine compartment through the wide-opening engine bonnet

Further Highlights

Relief for the driver through semi-automated movement of the loading system

Smart Handling

Relief for the driver through partially automated movement of the loading system
Increased safety, as the overturning of the vehicle in the longitudinal direction is avoided
Increase in efficiency as a result of setting the machine to the relevant working conditions

A higher cab can be ordered as an option for the telehandlers.

Two selectable cabin heights

Improved all-round visibility for the driver due to the elevated cab
Low cab variant for applications with limited clearance heights

The pedals in the footwell are not mounted on the ground.

Hanging pedals

Easy cleaning of the cab floor due to clearance below the pedals
Increased operating comfort due to ergonomic arrangement of pedals
One-piece, removable floor mat facilitates cleaning

Steering column can be adjusted in inclination and usually also in height.

Adjustable steering column

Setting of an ergonomically favorable position for each vehicle driver
More space to get in and out of the car by folding away the steering wheel

Less strain due to the automatic activation of the load stabiliser at high speeds

Load stabilizer with three operating modes

Load stabilizer automatically activated at high speeds to reduce wear and tear
Automatic deactivation at low speeds for precise control of the loading system
Relieving the operator with the automatic function

Comfortable feeling of space due to wide glass surfaces

Panoramic glazing

Optimum visibility over the entire stroke range
Pleasant feeling of space due to generous glass surfaces

The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Combined brake inching pedal

Simple and safe operation with combined brake inching pedal
Wear-free control of the operating speed even at high engine speeds
Maximum work hydraulics even at low operating speeds

Convenient pressure relief due to optimally placed button on the loading unit

Pressure release of 3rd control circuit

Quick and hassle-free coupling and uncoupling of attachments with auxiliary hydraulic functions while the engine is running
Convenient pressure release thanks to optimally placed pushbutton on the loading system
Saves time when changing hydraulically operated attachments

The central lubricating system ensures regular relubrication of all lubrication points.

Automatic central lubrication system

Higher life expectancy and value retention of the machine due to automatic lubrication of all lubrication points
Time and cost savings due to low and bundled maintenance of the central lubrication system
Optimum lubrication due to adjustable time intervals and grease quantities

Downloads

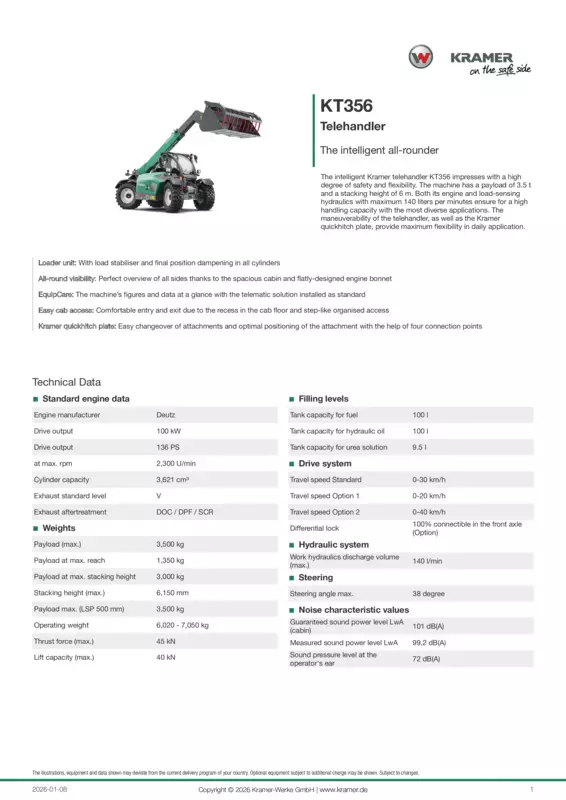

Brochure Kramer telehandlers up to 9.50 m stacking height

Download
