The Kramer telehandler 3610 while working with dung.

Telehandler 3610 - A hero with a strong arm.

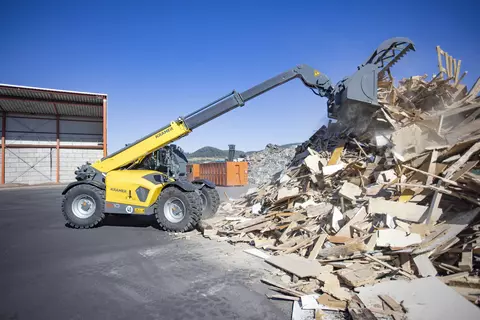

With an operating weight of 8,200 kg and its compact dimensions, the 3610 achieves a maximum stacking height of 9.50 m and a maximum payload of 3,600 kg. The 3-piece boom ensure maximum compactness. The vehicle has a length of just 5.03 m and is 2.28 m wide. As a result, the vehicle belongs to the “perfect all-rounder” class for its diverse application in the Kramer telehandler portfolio and is popular, above all, in the recycling sector.

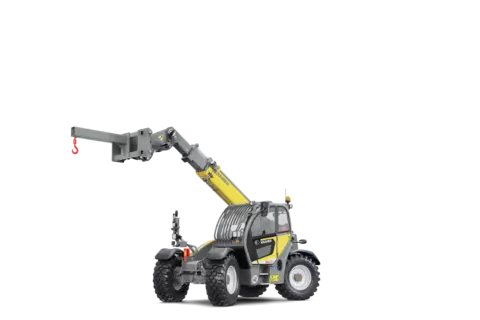

Telehandler 3610

Benefits at a glance

  • Cabin heights: In the standard cab with the 24-inch tires fitted as standard, the vehicle has an overall height of just 2.31 m. Alternatively, an 18 cm higher cab is available as an option.
  • Increased safety: Smart Handling, an intelligent overload system that avoids tilting the machine longitudinally.
  • Plenty of ride comfort: The machine is equipped with a bucket return automatic, which greatly facilitates operation.
  • EquipCare: The telematics solution installed as standard provides all the machine's figures and data at a glance.
  • Drive system: The continuously variable hydrostatic traction drive enables sensitive work and high pushing forces.

Highlights

360° visibility

  • Excellent 360° visibility thanks to large glass panels and narrow cab pillars
  • Panoramic front windshield for an optimal view of the attachment
Kramer telehandlers have 360° all-round visibility.

Color-coded toggle switch for hydraulic, electric, driving and safety functions.

  • Quick operator familiarization when switching drivers
  • Increased safety, as the risk of mistakenly confusing switches is minimized
  • Cross-model operating concept for easy fleet management
3610

Easy maintenance access

  • Easy access to the engine compartment thanks to the wide-opening engine hood
  • Optimal accessibility of all important components for checking fill levels
  • Quick implementation of service work due to upright-mounted filters and additional maintenance openings
Optimum accessibility to all important components in the engine compartment

7-inch LCD display showing all important operating data and machine settings. Operation is via the jog dial control.

  • Relevant machine data summarized at a glance on the display
  • Operation and setting of machine parameters simple and intuitive via the jog dial
  • Jog dial operation possible while driving
Operation and setting of the machine parameters simple and intuitive via the jog dial

Smart Handling

  • Relief for the driver through partially automated movement of the loading system
  • Increased safety, as the overturning of the vehicle in the longitudinal direction is avoided
  • Increase in efficiency as a result of setting the machine to the relevant working conditions
Relief for the driver through semi-automated movement of the loading system

Further Highlights

Improved all-round visibility for the driver due to the elevated cab.

Two selectable cabin heights

  • Improved all-round visibility for the driver due to the elevated cab
  • Low cab variant for applications with limited clearance heights
The pedals in the footwell are not mounted on the ground.

Hanging pedals

  • Easy cleaning of the cab floor due to clearance below the pedals
  • Increased operating comfort due to ergonomic arrangement of pedals
  • One-piece, removable floor mat facilitates cleaning
Steering column can be adjusted in inclination and usually also in height.

Adjustable steering column

  • Setting of an ergonomically favorable position for each vehicle driver
  • More space to get in and out of the car by folding away the steering wheel
Less strain due to the automatic activation of the load stabiliser at high speeds

Load stabilizer with three operating modes

  • Load stabilizer automatically activated at high speeds to reduce wear and tear
  • Automatic deactivation at low speeds for precise control of the loading system
  • Relieving the operator with the automatic function
Comfortable feeling of space due to wide glass surfaces

Panoramic glazing

  • Optimum visibility over the entire stroke range
  • Pleasant feeling of space due to generous glass surfaces
The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Combined brake inching pedal

  • Simple and safe operation with combined brake inching pedal
  • Wear-free control of the operating speed even at high engine speeds
  • Maximum work hydraulics even at low operating speeds
Convenient pressure relief due to optimally placed button on the loading unit

Pressure release of 3rd control circuit

  • Quick and hassle-free coupling and uncoupling of attachments with auxiliary hydraulic functions while the engine is running
  • Convenient pressure release thanks to optimally placed pushbutton on the loading system
  • Saves time when changing hydraulically operated attachments

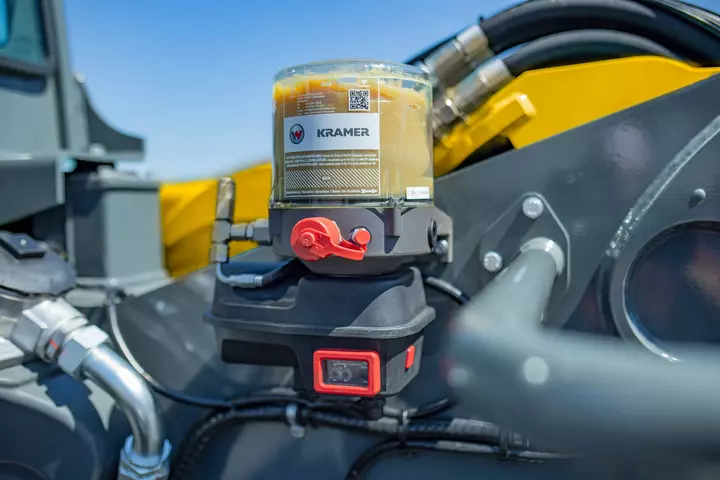

The central lubricating system ensures regular relubrication of all lubrication points.

Automatic central lubrication system

  • Higher life expectancy and value retention of the machine due to automatic lubrication of all lubrication points
  • Time and cost savings due to low and bundled maintenance of the central lubrication system
  • Optimum lubrication due to adjustable time intervals and grease quantities
  • Please note that the product range may vary depending on the country.

  • The technical data of the products may vary accordingly with the selection of different options.
