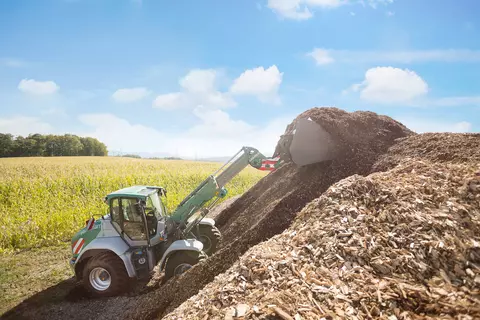

The Kramer telescopic wheel loader KL55.8T while working with wood chips.

Telescopic wheel loader KL55.8T - Stacking made easy

In the performance range of 9 - 11 tonnes, Kramer has the KL55.8T with Z-kinematics and telescopic loading system to offer. This is an enhanced version of the full-fledged wheel loader with the benefits of telehandlers such as the ever increased load-over height, stacking height, dumping height and transmission range. Along with loading of all the agricultural machines and trailers, filling of fodder mixing wagon or biogas plants, as well as bale stacks are important areas of application.

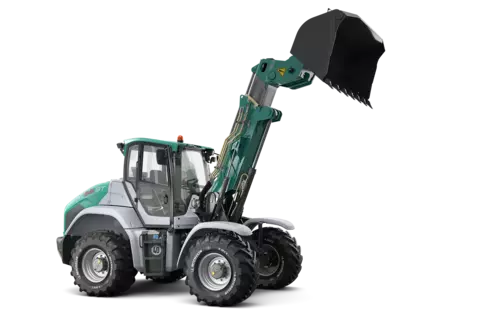

Telescopic wheel loader KL55.8T

Benefits at a glance

  • Engine: Choice of 100 kW or 115 kW Deutz engines provide sufficient power for all applications
  • Interior: The ergonomically arranged controls and excellent all-round visibility ensure fatigue-free and efficient work
  • Modern operating concept: 7" LCD display with integrated rear view camera and automatic functions such as bucket return provide easy machine control
  • Hydraulics: The powerful working hydraulics with load sensing and up to 180 l/min ensure the fastest working cycles
  • ecospeedPRO gearbox: A speed of up to 40 km/h with automatic speed regulation by the integrated Smart Driving

Highlights

All-wheel steering

  • High stability even with full steering angle thanks to the undivided frame
  • Maximum maneuverability thanks to steering angles of up to 40° on the front and rear axles
  • Steady payload regardless of steering angle for constant leverage ratios
The steering types of the Kramer wheel loader KL60.8.

Entry and exit on both sides

  • Increased safety due to entry and exit on the side opposite direction of traffic
  • Increased flexibility with entry from both sides
Increased flexibility due to access from both sides

EC tractor approval for public road transport

  • Use as towing vehicle with up to 20 t Trailer load
  • No restrictions regarding the load apart from the vehicle's own attachments
  • Road travel with attachments is possible in compliance with legal requirements
Operation as a tractor vehicle

360° visibility

  • Excellent 360° visibility thanks to large glass panels and narrow cab pillars
  • Panoramic front windshield for an optimal view of the attachment
Kramer wheel loaders have 360° all-round visibility.

Color-coded toggle switch for hydraulic, electric, driving and safety functions.

  • Quick operator familiarization when switching drivers
  • Increased safety, as the risk of mistakenly confusing switches is minimized
  • Cross-model operating concept for easy fleet management
KL55.8T

Further Highlights

Relevant machine data summarised at a single glance on the display

7-inch LCD display showing all important operating data and machine settings. Operation is via the jog dial control.

  • Relevant machine data summarized at a glance on the display
  • Operation and setting of machine parameters simple and intuitive via the jog dial
  • Jog dial operation possible while driving
Less strain due to the automatic activation of the load stabiliser at high speeds

Load stabilizer with three operating modes

  • Load stabilizer automatically activated at high speeds to reduce wear and tear
  • Automatic deactivation at low speeds for precise control of the loading system
  • Relieving the operator with the automatic function
The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Hanging pedals

  • Easy cleaning of the cab floor due to clearance below the pedals
  • Increased operating comfort due to ergonomic arrangement of pedals
  • One-piece, removable floor mat facilitates cleaning
Optimum accessibility of all important components for checking the liquid levels

Easy maintenance access

  • Easy access to the engine compartment thanks to the wide-opening engine hood
  • Optimal accessibility of all important components for checking fill levels
  • Quick implementation of service work due to upright-mounted filters and additional maintenance openings
The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Combined brake inching pedal

  • Simple and safe operation with combined brake inching pedal
  • Wear-free control of the operating speed even at high engine speeds
  • Maximum work hydraulics even at low operating speeds
Quick coupling and uncoupling of attachments

Pressure release of 3rd control circuit

  • Quick and hassle-free coupling and uncoupling of attachments with auxiliary hydraulic functions while the engine is running
  • Convenient pressure release thanks to optimally placed pushbutton on the loading system
  • Saves time when changing hydraulically operated attachments
