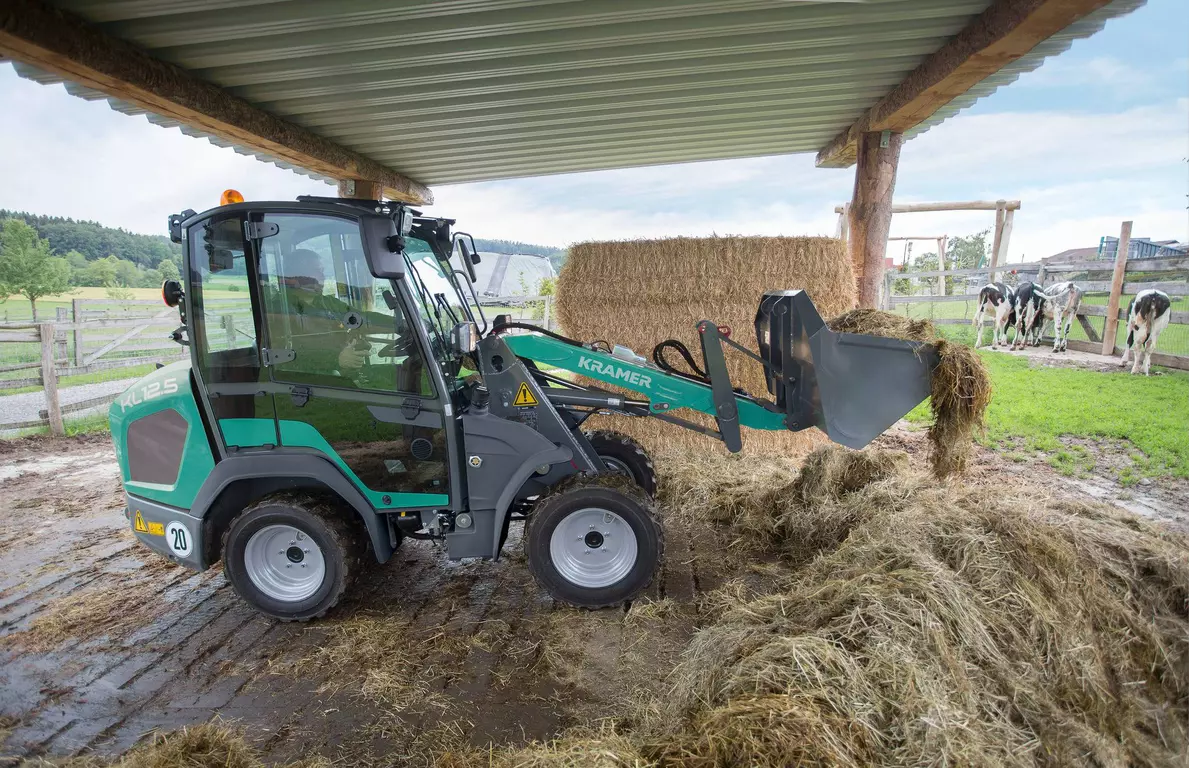

The compact KL12.5 while transporting dung.

Wheel loader KL12.5 - The compact wizard with best dimensions

With a very compact design, KL12.5 is a desired helper in work done in narrow spaces. Given its height, the machine can be used in several ways and therefore facilitates applications in buildings or while driving on pavements. Due to its very low net weight, the wheel loader can be transported without any problems on 3.5 t trailers.

Wheel loader KL12.5

Benefits at a glance

  • Compact motor design: The 18.5 kW engine does not require exhaust gas aftertreatment and complies with exhaust gas stage V.
  • Two cabin heights: Standard 2.02 m and optional 2.17 m
  • Ergonomics: The side console contains numerous storage compartments in addition to many functional and ergonomic features. All important switches are located in the grip area of the right hand
  • Comfortable cabin design: A wide entrance with additional step ensures comfortable and safe entry and exit

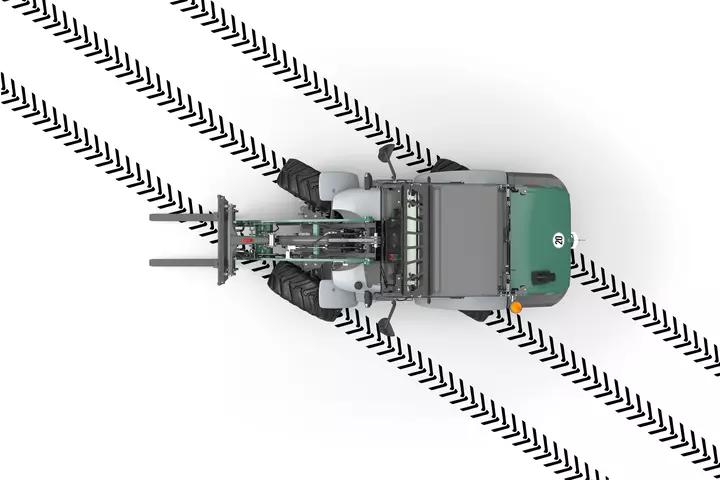

  • Front axle and crab steering: The crabwalk not only enables the optimal reaching of the obstacles but also keeps the constant distance in parallel

Highlights

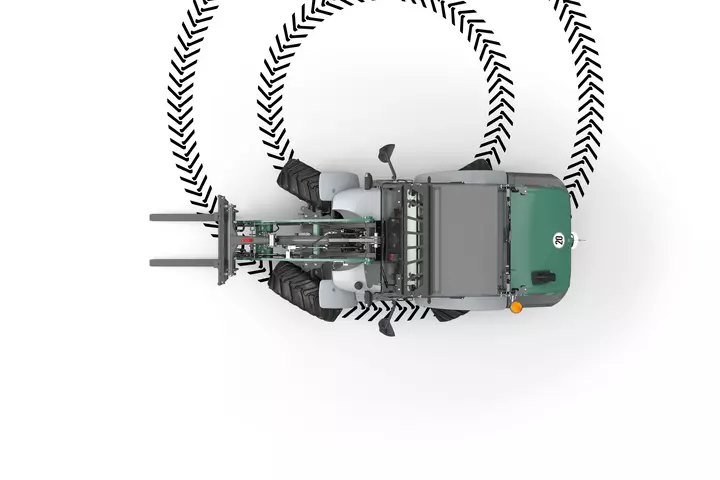

All-wheel steering

  • High stability even with full steering angle thanks to the undivided frame
  • Maximum maneuverability thanks to steering angles of up to 40° on the front and rear axles
  • Steady payload regardless of steering angle for constant leverage ratios

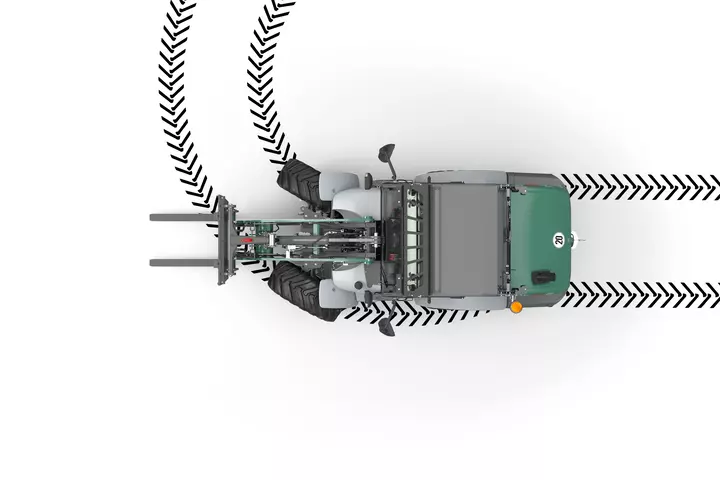

The steering types of the Kramer wheel loader KL60.8.

360° visibility

  • Excellent 360° visibility thanks to large glass panels and narrow cab pillars
  • Panoramic front windshield for an optimal view of the attachment

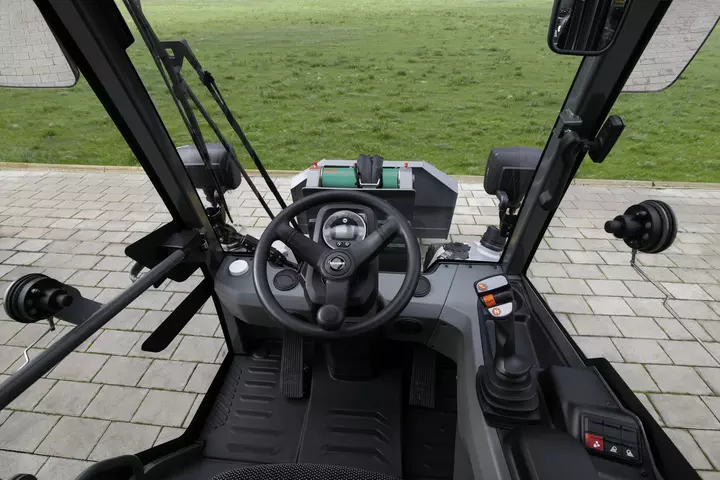

Kramer wheel loaders have 360° all-round visibility.

Color-coded toggle switch for hydraulic, electric, driving and safety functions.

  • Quick operator familiarization when switching drivers
  • Increased safety, as the risk of mistakenly confusing switches is minimized
  • Cross-model operating concept for easy fleet management
KL12.5

Low cabin

  • With a height of 2.02 m, optimal application in areas with restricted clearance
  • There is the option to have a canopy or closed cabin

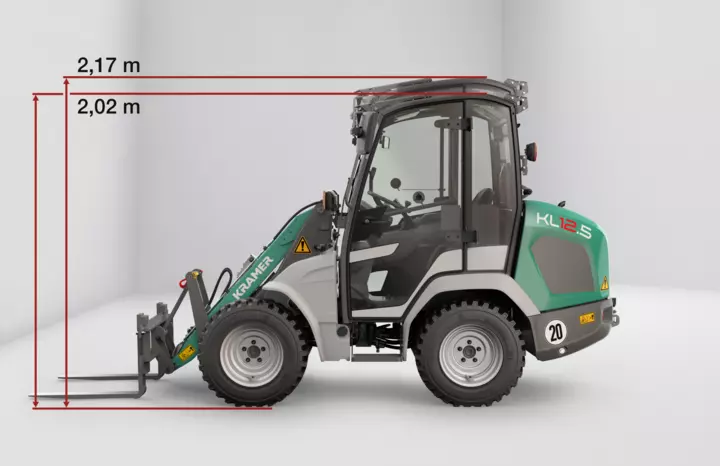

Optimal use for limited passageways

Easy maintenance access

  • Easy access to the engine compartment thanks to the wide-opening engine hood
  • Optimal accessibility of all important components for checking fill levels
  • Quick implementation of service work due to upright-mounted filters and additional maintenance openings

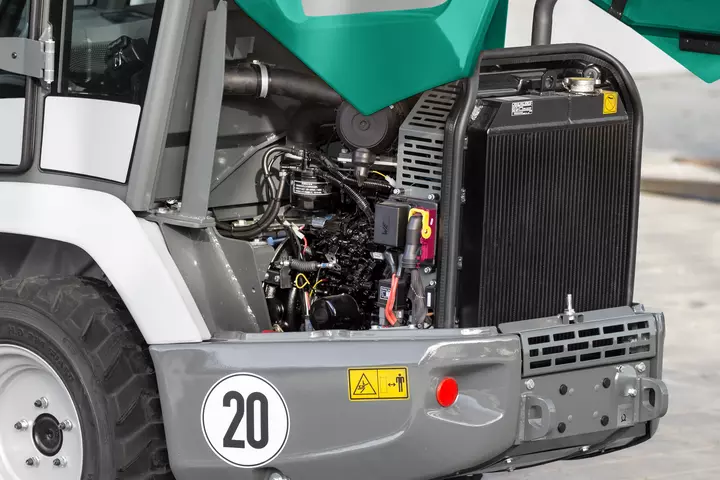

Easy access to the engine compartment through the wide-opening engine bonnet

Further Highlights

Less strain due to the automatic activation of the load stabiliser at high speeds

Load stabilizer with three operating modes

  • Load stabilizer automatically activated at high speeds to reduce wear and tear
  • Automatic deactivation at low speeds for precise control of the loading system
  • Relieving the operator with the automatic function

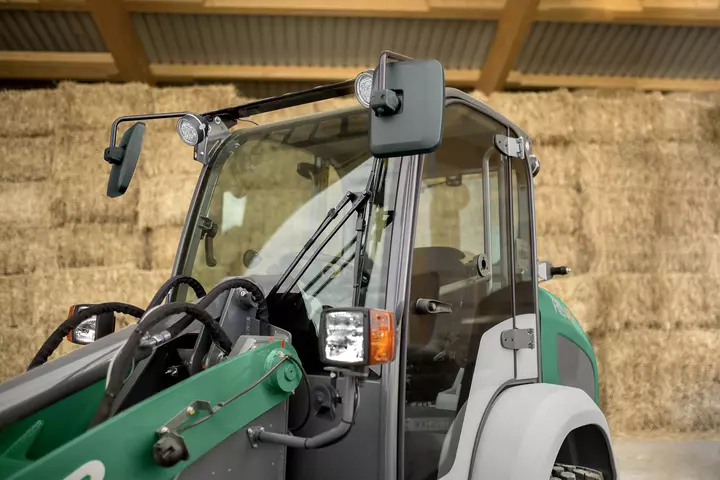

Comfortable feeling of space due to wide glass surfaces

Panoramic glazing

  • Optimum visibility over the entire stroke range
  • Pleasant feeling of space due to generous glass surfaces
The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Combined brake inching pedal

  • Simple and safe operation with combined brake inching pedal
  • Wear-free control of the operating speed even at high engine speeds
  • Maximum work hydraulics even at low operating speeds
Easy coupling and uncoupling of attachments

Pressure release of 3rd control circuit

  • Quick and hassle-free coupling and uncoupling of attachments with auxiliary hydraulic functions while the engine is running
  • Convenient pressure release thanks to optimally placed pushbutton on the loading system
  • Saves time when changing hydraulically operated attachments

Downloads

Brochure Wheel and telescopic wheel loaders KL12.5/KL14.5/KL18.5/KL19.5/KL25.5/KL25.5T

Download

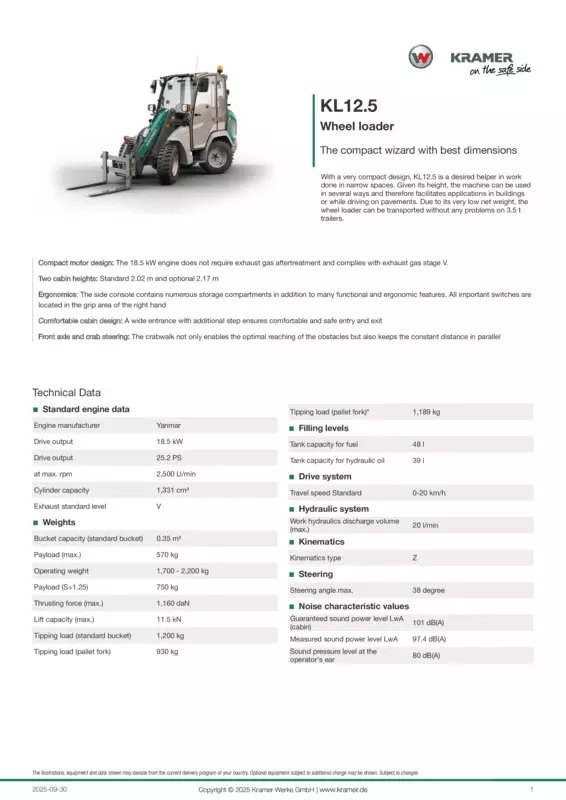

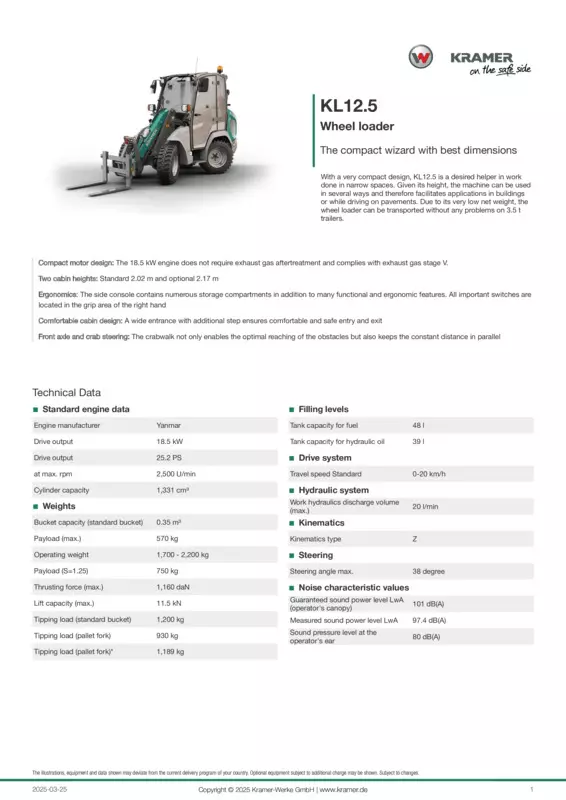

PI Sheet KL12.5
