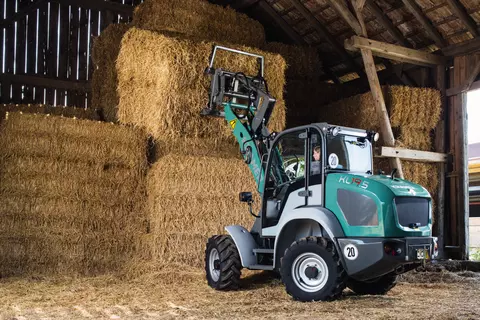

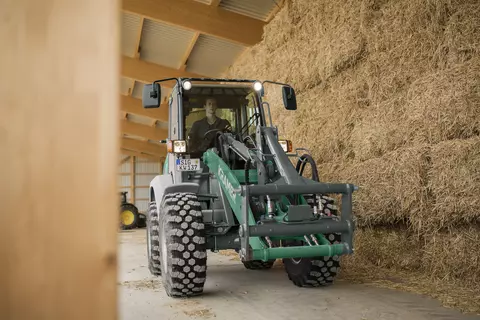

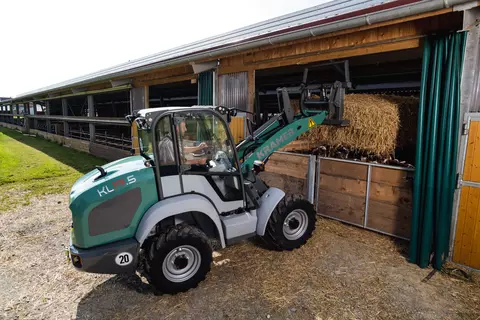

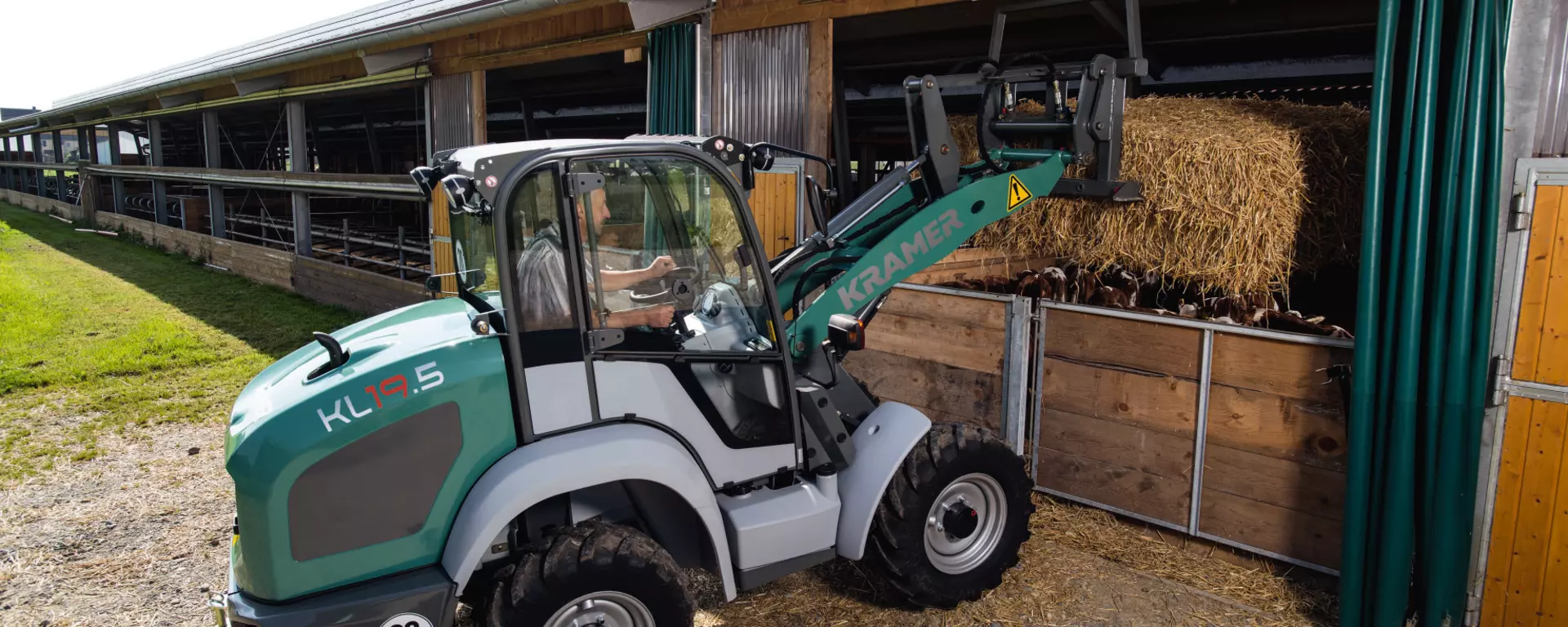

The Kramer wheel loader KL19.5 while mock out the stable.

Wheel loader KL19.5 - Maximum flexibility in work routine

The low clearance width of the Kramer KL19.5 wheel loader ensures that no problems are caused while working in confined spaces for instance. The unmatched design characteristics of Kramer all wheel steering and one-piece chassis can also naturally be seen in this vehicle. This helps in achieving compact machines with above-average stability and high payloads in low operating weight.

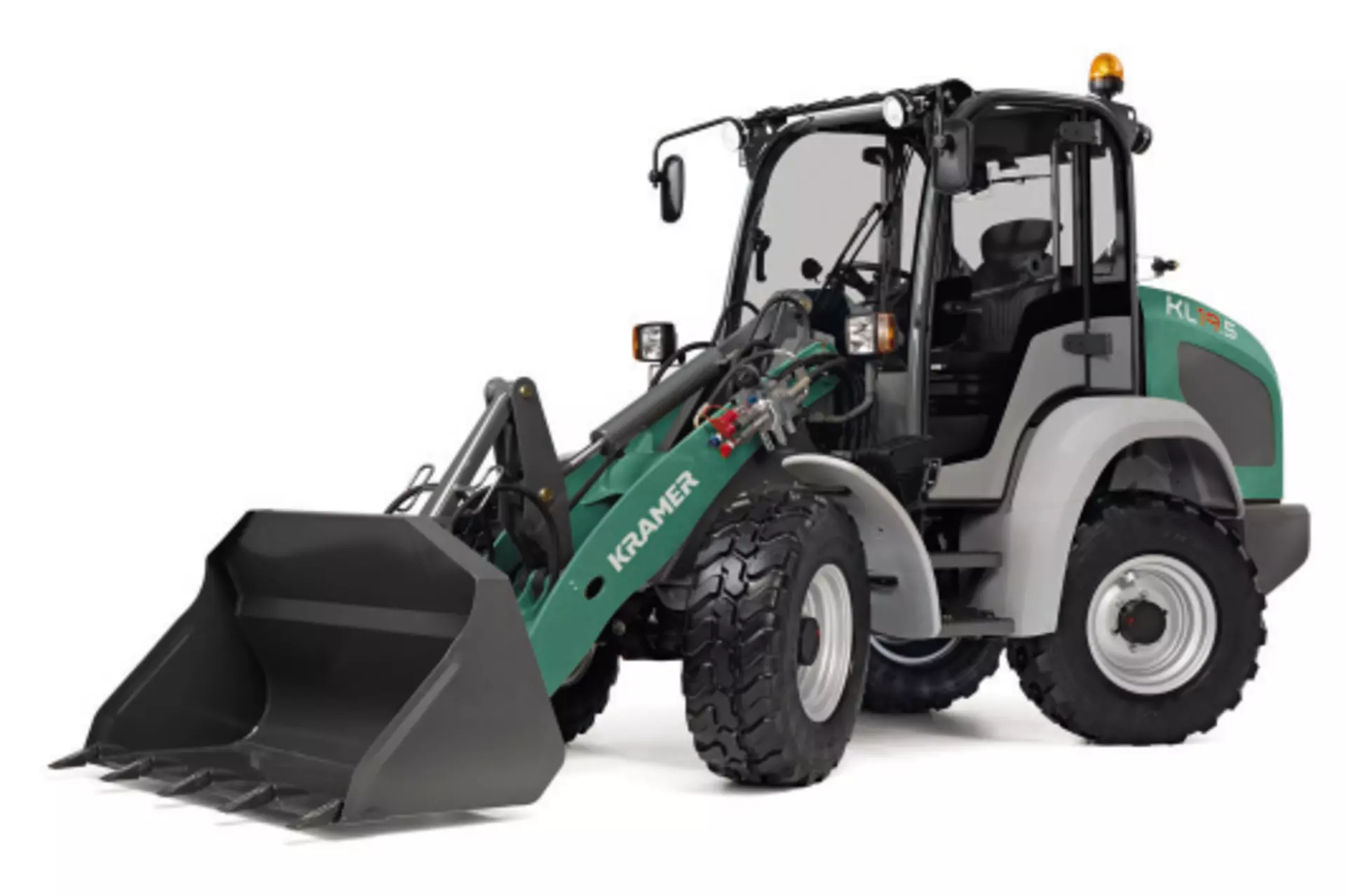

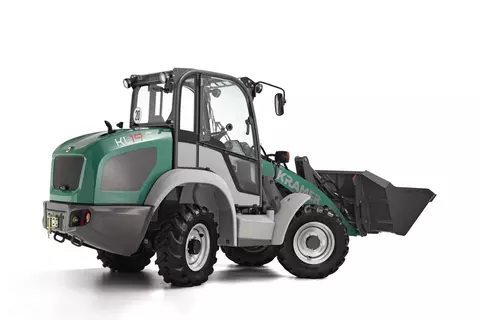

Wheel loader KL19.5

Benefits at a glance

  • Low height: With a height of less than 2.5 m, operations in low spaces such as stables can be carried out without any problems
  • Maneuverability: A combination of 2,700 mm turning radius (outer edge of tire) realized by 2 x 38° steering angle and optimum stability
  • Economic efficiency: The low dead weight enables economical use
  • More range: Due to the specially shaped loading system and the P-kinematics, unloading from 2. Series no problem
  • Visibility ratio: The low approach of the Kramer loader enables perfect all-round visibility

Highlights

360° visibility

  • Excellent all-round visibility thanks to large glass areas and narrow cab pillars
  • Panoramic front window for an optimal view of the attachment
Kramer wheel loaders have 360° all-round visibility.

Color-coded switches

  • Uniformed color scheme for hydraulic, electric, driving, and safety features
  • Increased safety due to minimized danger of mixing up switches
  • Operating concept that reaches across all models to simplify the handling of the fleet

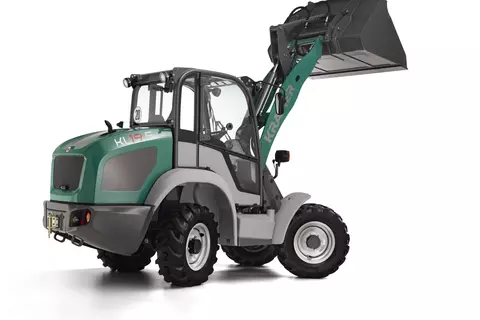

KL19.5

Easy maintenance access

  • Easy access to the engine compartment thanks to the wide-opening engine hood
  • Optimal accessibility of all important components for checking fill levels
  • Quick implementation of service work due to upright-mounted filters and additional maintenance openings
Easy access to the engine compartment through the wide-opening engine bonnet

All-wheel steering

  • High stability even with full steering angle due to the undivided frame
  • Maximum maneuverability thanks to steering angles of up to 40° each on the front and rear axles
  • Constant payload independent of steering angle for constant lever ratios
The steering types of the Kramer wheel loader KL60.8.

Further Highlights

Less strain due to the automatic activation of the load stabiliser at high speeds

Load stabilizer with three operating modes

  • Protection through automatic activation of the load stabilizer at high speeds
  • Automatic deactivation at low speed for precise control of the loading system
  • Relieving the operator with the automatic function
Comfortable feeling of space due to wide glass surfaces

Panoramic glazing

  • Optimum visibility over the entire stroke range
  • Pleasant feeling of space due to generous glass surfaces
The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Combined brake-inch pedal

  • Simple and safe operation due to combined brake inching pedal
  • Wear-free control of the working speed even at high engine speed
  • Maximum working hydraulics even at low working speed
Easy and quick coupling and uncoupling of attachments

Pressure release of 3rd control circuit

  • Easy and fast coupling and uncoupling of attachments with hydraulic auxiliary functions while the engine is running
  • Convenient performance of pressure relief due to optimally placed button on the loading unit
  • Time saving when changing hydraulically operated attachments
  • Please note that the product range may vary depending on the country.

  • The technical data of the products may vary accordingly with the selection of different options.
