The Kramer wheel loader KL43.8 while transporting, loading and stacking straw.

Wheel loader KL43.8 - The sturdy high-performance wheel loader

The wheel loader KL43.8 from the Kramer premium class stands for modern technology, high level of efficiency and above all comfort. Other positive points include its optimal power-to-weight ratio, as well as its exceptional power values. The bucket capacity of 1.15-1.8 m³, depending on the material density, paired with the unique powerful engine version makes KL43.8 a real high-performance wheel loader. The optional Ecospeed gearbox and the large tires facilitate more applications of this machine.

Wheel loader KL43.8

Benefits at a glance

  • ecospeed transmission: Acceleration of up to 40 km/h is possible without shifting gears
  • Smart Attach: Changing hydraulic attachments is quick, easy and safe
  • Optimal tractor: With optional trailer hitch and corresponding EC approval
  • Safety: The wide entrance on both sides and at the same time exit allows safe ascent and descent.
  • Panoramic cabin: The large cabin including extensive glazing provides excellent all-round visibility

Highlights

All-wheel steering

  • High stability even with full steering angle thanks to the undivided frame
  • Maximum maneuverability thanks to steering angles of up to 40° on the front and rear axles
  • Steady payload regardless of steering angle for constant leverage ratios
The steering types of the Kramer wheel loader KL60.8.

Entry and exit on both sides

  • Increased safety due to entry and exit on the side opposite direction of traffic
  • Increased flexibility with entry from both sides
Increased flexibility due to access from both sides

EC tractor approval for public road transport

  • Use as towing vehicle with up to 20 t Trailer load
  • No restrictions regarding the load apart from the vehicle's own attachments
  • Road travel with attachments is possible in compliance with legal requirements
Operation as a tractor vehicle

Color-coded toggle switch for hydraulic, electric, driving and safety functions.

  • Quick operator familiarization when switching drivers
  • Increased safety, as the risk of mistakenly confusing switches is minimized
  • Cross-model operating concept for easy fleet management
KL43.8

Smart Attach fully-hydraulic quickhitch system

  • Coupling of hydraulically driven attachments with the automatic connection of the hydraulic circuit, without the need to get out and in
  • Increased productivity as a result of cost and time savings
  • Attachments changed within seconds for full flexibility
KL43.8

Further Highlights

Easy access to the engine compartment through the wide-opening bonnet

Easy maintenance access

  • Easy access to the engine compartment thanks to the wide-opening engine hood
  • Optimal accessibility of all important components for checking fill levels
  • Quick implementation of service work due to upright-mounted filters and additional maintenance openings
Less strain due to the automatic activation of the load stabiliser at high speeds

Load stabilizer with three operating modes

  • Load stabilizer automatically activated at high speeds to reduce wear and tear
  • Automatic deactivation at low speeds for precise control of the loading system
  • Relieving the operator with the automatic function
The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Hanging pedals

  • Easy cleaning of the cab floor due to clearance below the pedals
  • Increased operating comfort due to ergonomic arrangement of pedals
  • One-piece, removable floor mat facilitates cleaning
The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Combined brake inching pedal

  • Simple and safe operation with combined brake inching pedal
  • Wear-free control of the operating speed even at high engine speeds
  • Maximum work hydraulics even at low operating speeds
Quick coupling and uncoupling of attachments

Pressure release of 3rd control circuit

  • Quick and hassle-free coupling and uncoupling of attachments with auxiliary hydraulic functions while the engine is running
  • Convenient pressure release thanks to optimally placed pushbutton on the loading system
  • Saves time when changing hydraulically operated attachments

Downloads

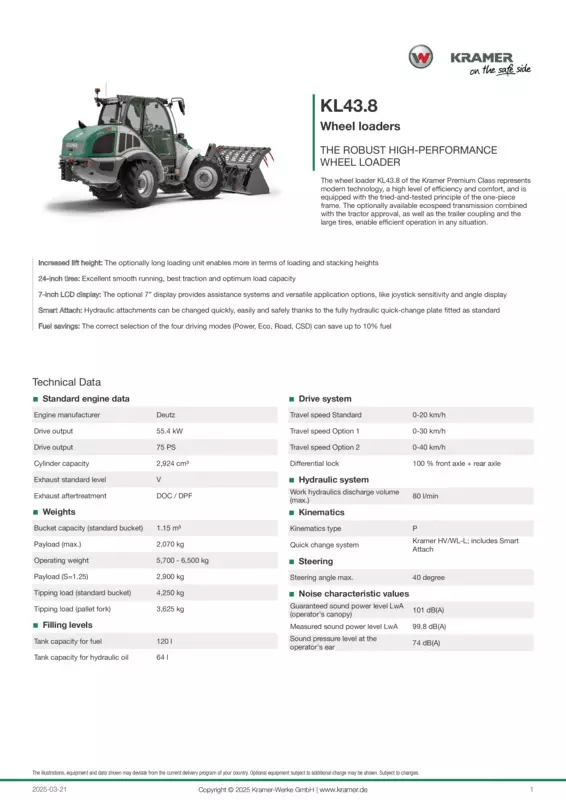

Brochure The wheel and telescopic wheel loaders KL37.8/KL41.8/KL43.8/KL30.8T/KL35.8T

Download
