KT559

Telehandler KT559 - For your everyday masterpiece

The top model KT559 has a lift capacity of 5.5 metric tons and a stacking height of 8.75 m. The 156 hp-strong Deutz engine with a torque of 609 Nm combined with a max. bucket volume of up to 4 m³ makes possible the highest handling outputs for applications in professional agriculture. The sensitive Load Sensing hydraulic pump produces up to 187 l/min, thus offering enough output for fast loading cycles. Even trailer loads of up to 20 metric tons are no problem for this telehandler.

Telehandler KT559

Benefits at a glance

  • Heavy duty axes: In combination with the 100% limited slip differential, ensure maximum traction of the vehicle even in demanding operations
  • Four steering modes: all-wheel; front-axle; crab steering and manual crab steering - the right steering mode for every application
  • Overload height: The telescopic loading system allows a maximum stacking height of 8.75 m
  • Engine: Powerful EU exhaust stage V Deutz engines with a maximum power of 115 kW (156hp) and a wide-opening engine hood for easy maintenance
  • Hydraulics: Powerful working hydraulics with load sensing and a maximum of 187 l/min ensures the fastest working cycles

Highlights

360° visibility

  • Excellent 360° visibility thanks to large glass panels and narrow cab pillars
  • Panoramic front windshield for an optimal view of the attachment
Kramer telehandlers have 360° all-round visibility.

Color-coded toggle switch for hydraulic, electric, driving and safety functions.

  • Quick operator familiarization when switching drivers
  • Increased safety, as the risk of mistakenly confusing switches is minimized
  • Cross-model operating concept for easy fleet management
KT559

7-inch LCD display showing all important operating data and machine settings. Operation is via the jog dial control.

  • Relevant machine data summarized at a glance on the display
  • Operation and setting of machine parameters simple and intuitive via the jog dial
  • Jog dial operation possible while driving
Operation and setting of the machine parameters simple and intuitive via the jog dial

EC tractor approval for public road transport

  • Use as towing vehicle with up to 20 t Trailer load
  • No restrictions regarding the load apart from the vehicle's own attachments
  • Road travel with attachments is possible in compliance with legal requirements
EC Certificate of Conformity for tractorsl for public road transport

Easy maintenance access

  • Easy access to the engine compartment thanks to the wide-opening engine hood
  • Optimal accessibility of all important components for checking fill levels
  • Quick implementation of service work due to upright-mounted filters and additional maintenance openings
Easy access to the engine compartment through the wide-opening engine bonnet

Further Highlights

Relief for the driver through semi-automated movement of the loading system

Smart Handling

  • Relief for the driver through partially automated movement of the loading system
  • Increased safety, as the overturning of the vehicle in the longitudinal direction is avoided
  • Increase in efficiency as a result of setting the machine to the relevant working conditions
The pedals in the footwell are not mounted on the ground.

Hanging pedals

  • Easy cleaning of the cab floor due to clearance below the pedals
  • Increased operating comfort due to ergonomic arrangement of pedals
  • One-piece, removable floor mat facilitates cleaning
Steering column can be adjusted in inclination and usually also in height.

Adjustable steering column

  • Setting of an ergonomically favorable position for each vehicle driver
  • More space to get in and out of the car by folding away the steering wheel
Less strain due to the automatic activation of the load stabiliser at high speeds

Load stabilizer with three operating modes

  • Load stabilizer automatically activated at high speeds to reduce wear and tear
  • Automatic deactivation at low speeds for precise control of the loading system
  • Relieving the operator with the automatic function
Comfortable feeling of space due to wide glass surfaces

Panoramic glazing

  • Optimum visibility over the entire stroke range
  • Pleasant feeling of space due to generous glass surfaces
The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Combined brake inching pedal

  • Simple and safe operation with combined brake inching pedal
  • Wear-free control of the operating speed even at high engine speeds
  • Maximum work hydraulics even at low operating speeds
Convenient pressure relief due to optimally placed button on the loading unit

Pressure release of 3rd control circuit

  • Quick and hassle-free coupling and uncoupling of attachments with auxiliary hydraulic functions while the engine is running
  • Convenient pressure release thanks to optimally placed pushbutton on the loading system
  • Saves time when changing hydraulically operated attachments
The central lubricating system ensures regular relubrication of all lubrication points.

Automatic central lubrication system

  • Higher life expectancy and value retention of the machine due to automatic lubrication of all lubrication points
  • Time and cost savings due to low and bundled maintenance of the central lubrication system
  • Optimum lubrication due to adjustable time intervals and grease quantities

Downloads

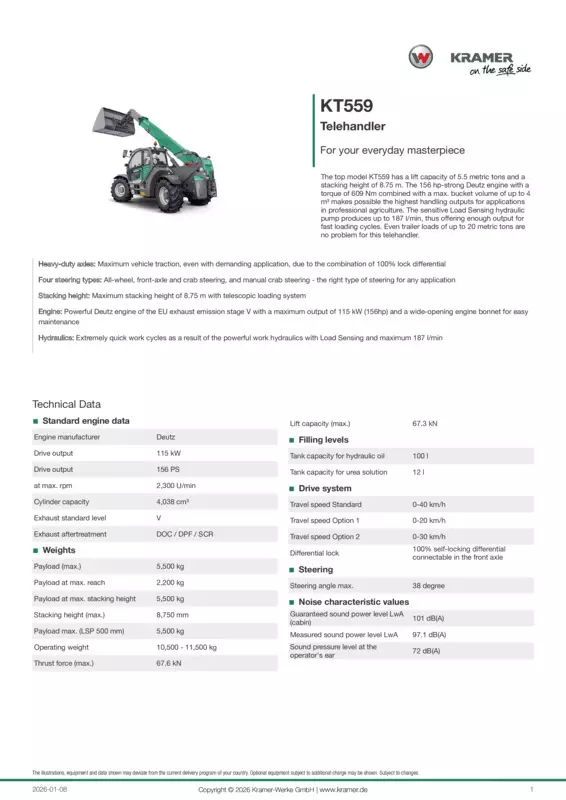

Brochure Kramer telehandlers up to 9.50 m stacking height

Download
