Technical Data
| Engine manufacturer | Deutz |
| Drive output | 100 kW |
| Drive output | 136 PS |
| At max. rpm | 2,300 U/min |
| Cylinder capacity | 3,621 cm³ |
| Exhaust standard level | V |
| Exhaust aftertreatment | DOC / DPF / SCR |
| Payload (max.) | 3,500 kg |
| Payload at max. reach | 1,200 kg |
| Payload at max. stacking height | 2,200 kg |
| Stacking height (max.) | 7,000 mm |
| Payload max. (LSP 500 mm) | 3,500 kg |
| Operating weight | 6,170 - 7,500 kg |
| Thrust force (max.) | 50 kN |
| Lift capacity (max.) | 43 kN |
| Tank capacity for fuel | 100 l |
| Tank capacity for hydraulic oil | 100 l |
| Tank capacity for urea solution | 9.5 l |
| Travel speed Standard | 0-30 km/h |
| Travel speed Option 1 | 0-20 km/h |
| Travel speed Option 2 | 0-40 km/h |
| Differential lock | 100% connectible in the front axle (Option) |
| Work hydraulics discharge volume (max.) | 140 l/min |
| Steering angle max. | 38 degree |
| Guaranteed sound power level LwA (cabin) | 101 dB(A) |
| Measured sound power level LwA | 99.2 dB(A) |
| Sound pressure level at the operator's ear | 72 dB(A) |

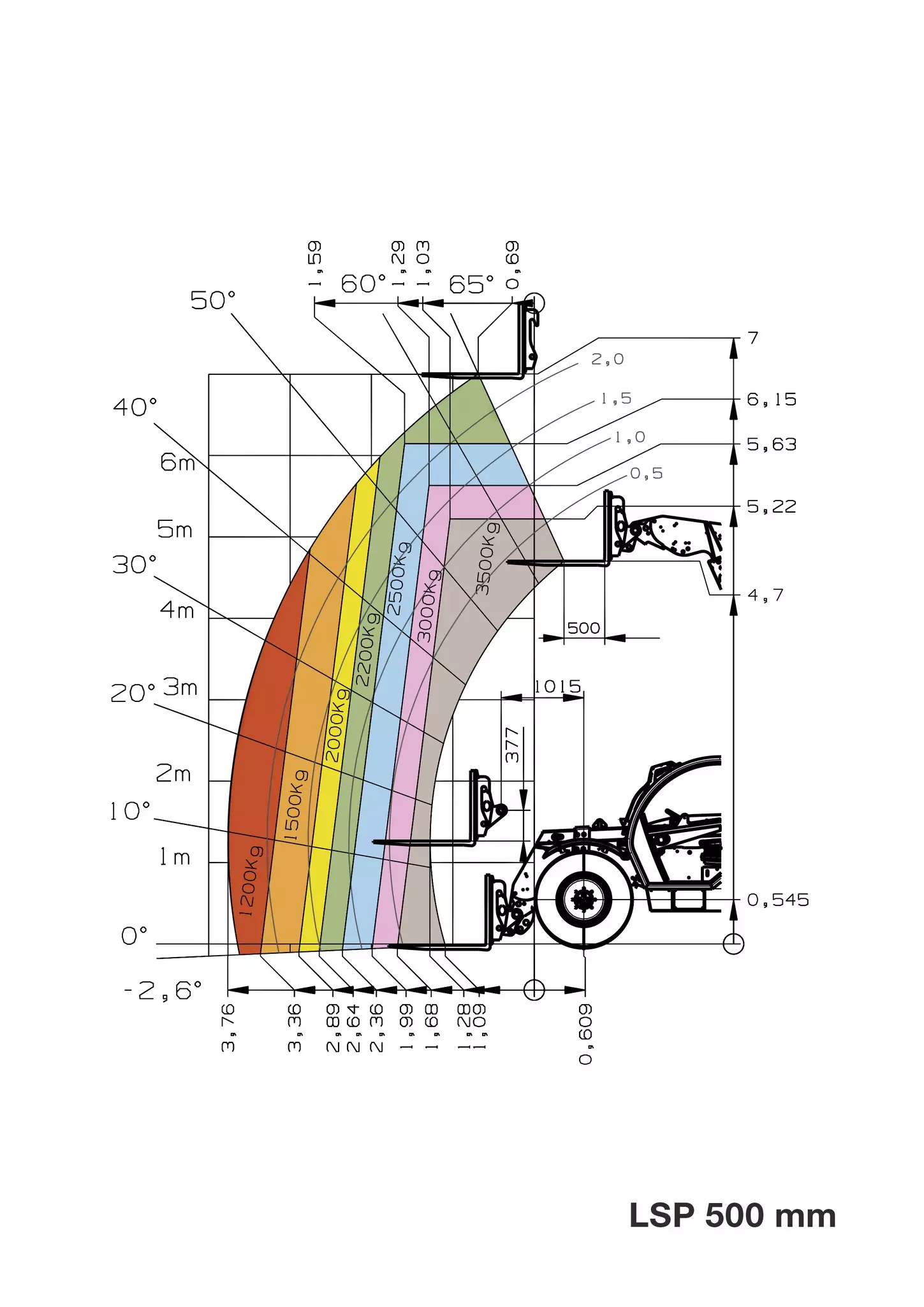

Traglast
|
-
Vibrations (Uncertainties of measurement as specified in ISO/TR 25398:2006. Please instruct or inform the operator of possible dangers caused by vibrations.): Vibration total value of the upper extremities of the body in m/s² < 2.5 m/s² (< 8.2 feet/s²) and maximum weighted average effective value of acceleration for the body in m/s² < 0.5 m/s² (< 1.64 feet/s²) (on flat and solid ground with the corresponding driving style) and 1.28 m/s² (4.19 feet/s²) (Application in extraction under harsh environmental conditions).
-
