Wheel loader KL41.8 - The intelligent power wheel loader
The wheel loader KL41.8 has been developed for challenging applications. This machine impresses with a high level of reliability and functionality with optimal manoeuvrability and stability. KL41.8 is equipped with a comfortable cab, in which the operating elements are designed ergonomically. The use of high-value components and the excellent processing are a given for our machines from the 8-series.
Wheel loader KL41.8
Benefits at a glance
- Comfortable cabin: The wide entry and exit on both sides allows safe ascent and descent into the cab
- Transportation specialist: With optional tractor registration, trailer coupling and air brake system
- Engine: Powerful EU exhaust stage V Deutz engines with 55 kW (75 hp) or optionally 74 kW (100 hp)
- Three steering modes: All-wheel, front-axle and crab steering - the right steering type for every application
- Thrusting force: Maximum thrust and best traction through efficient high-pressure traction drive and 100% differential lock
Highlights
All-wheel steering
- High stability even with full steering angle thanks to the undivided frame
- Maximum maneuverability thanks to steering angles of up to 40° on the front and rear axles
- Steady payload regardless of steering angle for constant leverage ratios
Entry and exit on both sides
- Increased safety due to entry and exit on the side opposite direction of traffic
- Increased flexibility with entry from both sides
EC tractor approval for public road transport
- Use as towing vehicle with up to 20 t Trailer load
- No restrictions regarding the load apart from the vehicle's own attachments
- Road travel with attachments is possible in compliance with legal requirements
Color-coded toggle switch for hydraulic, electric, driving and safety functions.
- Quick operator familiarization when switching drivers
- Increased safety, as the risk of mistakenly confusing switches is minimized
- Cross-model operating concept for easy fleet management
Smart Attach fully-hydraulic quickhitch system
- Coupling of hydraulically driven attachments with the automatic connection of the hydraulic circuit, without the need to get out and in
- Increased productivity as a result of cost and time savings
- Attachments changed within seconds for full flexibility
Further Highlights
Easy maintenance access
- Easy access to the engine compartment thanks to the wide-opening engine hood
- Optimal accessibility of all important components for checking fill levels
- Quick implementation of service work due to upright-mounted filters and additional maintenance openings
Load stabilizer with three operating modes
- Load stabilizer automatically activated at high speeds to reduce wear and tear
- Automatic deactivation at low speeds for precise control of the loading system
- Relieving the operator with the automatic function
Hanging pedals
- Easy cleaning of the cab floor due to clearance below the pedals
- Increased operating comfort due to ergonomic arrangement of pedals
- One-piece, removable floor mat facilitates cleaning
Combined brake inching pedal
- Simple and safe operation with combined brake inching pedal
- Wear-free control of the operating speed even at high engine speeds
- Maximum work hydraulics even at low operating speeds
Pressure release of 3rd control circuit
- Quick and hassle-free coupling and uncoupling of attachments with auxiliary hydraulic functions while the engine is running
- Convenient pressure release thanks to optimally placed pushbutton on the loading system
- Saves time when changing hydraulically operated attachments
-
Please note that the product range may vary depending on the country.
-
The technical data of the products may vary accordingly with the selection of different options.
Downloads

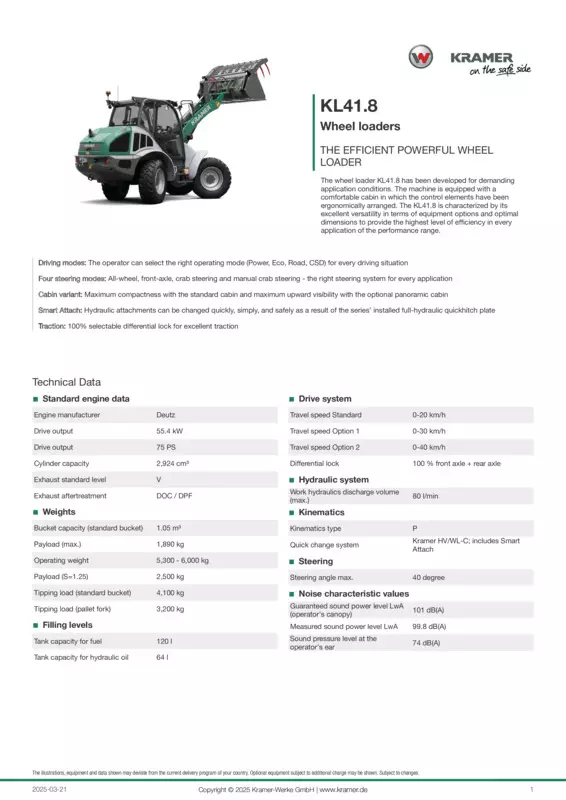

Brochure The wheel and telescopic wheel loaders KL37.8/KL41.8/KL43.8/KL30.8T/KL35.8T
