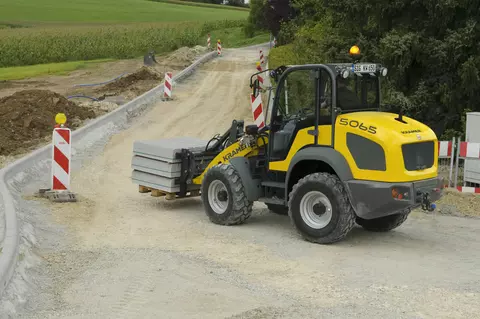

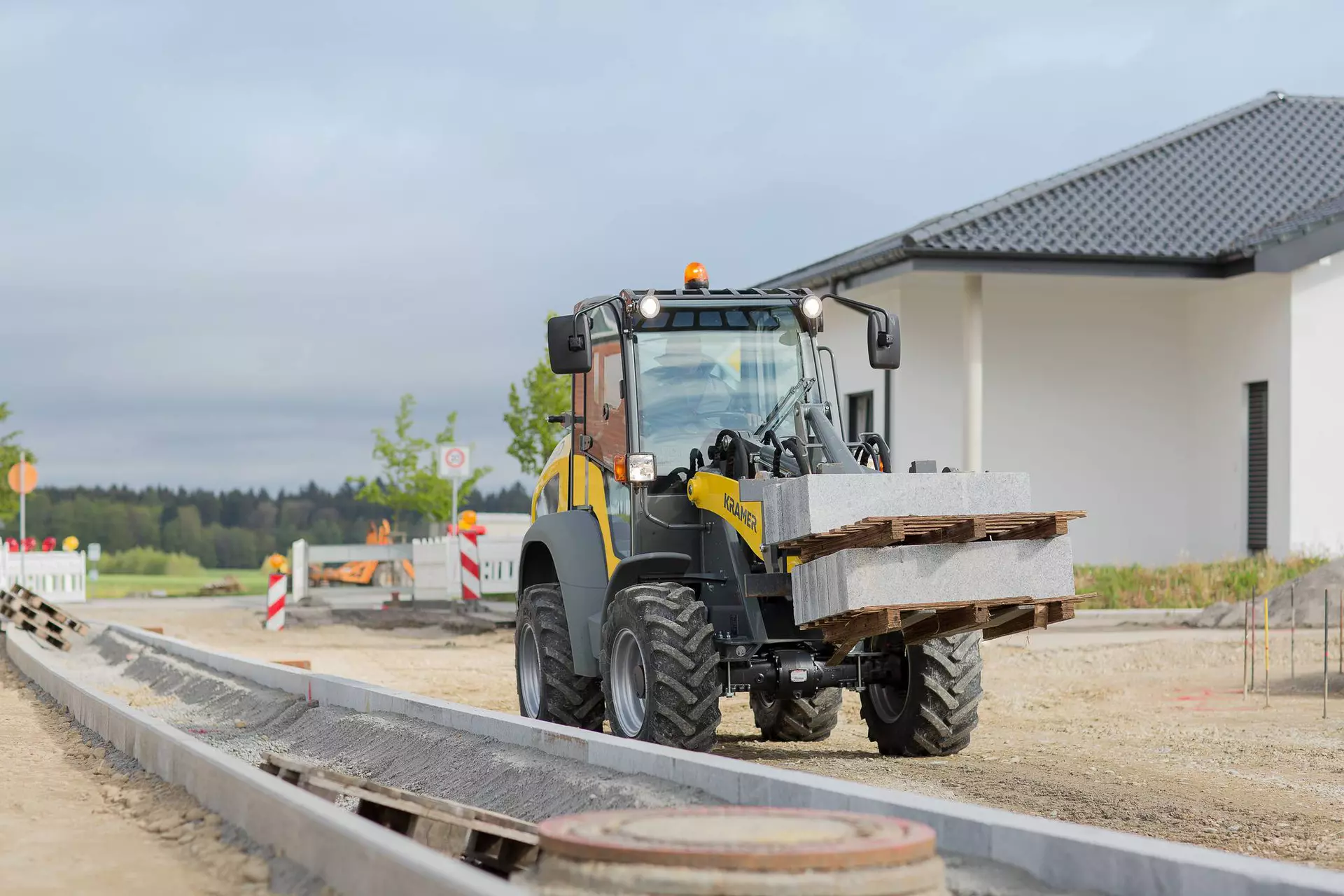

The Kramer wheel loader 5065 with a stone pallet.

Wheel Loader 5065 - Rugged on the outside and intelligent on the inside.

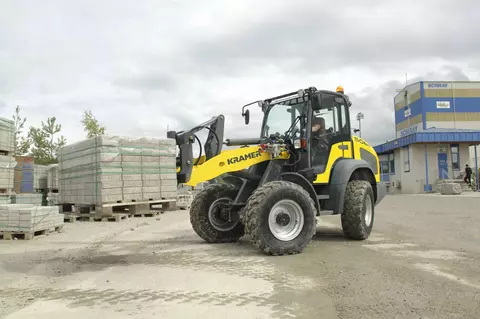

The all-wheel drive 5065, which has become known as the "650", is a model in the 5 Series and is synonymous with compactness and maneuverability. The bucket volume of 0.65 m³ to 1.1 m³ and the standard Kramer quick-release plate allow unbeatable flexibility for any application. The undivided frame and proven all-wheel steering ensure maximum stability and maneuverability on uneven terrain. Especially in road construction, horticulture and landscaping, the machine is easily able to lift a stone pallet - a special feature in this size class.

Wheel Loader 5065

Benefits at a glance

  • Flexible use: A bucket volume from 0.65 m³ to 1.1 m³ depending on material density.
  • Safety: The convenient and intuitive operation of all functions creates safety, even for novice drivers.
  • Constant payload: Due to the undivided frame, the vehicle has an unchanged vehicle length which enables a constantly high payload.
  • Environmentally friendly engine technology: One 35 kW engine with exhaust stage V, as well as DOC and DPF.

Highlights

360° visibility

  • Excellent all-round visibility thanks to large glass areas and narrow cab pillars
  • Panoramic front window for an optimal view of the attachment
Kramer wheel loaders have 360° all-round visibility.

Color-coded switches

  • Uniformed color scheme for hydraulic, electric, driving, and safety features
  • Increased safety due to minimized danger of mixing up switches
  • Operating concept that reaches across all models to simplify the handling of the fleet
The colour labelled switches of the small 5 series from Kramer.

Easy maintenance access

  • Easy access to the engine compartment thanks to the wide-opening hood
  • Optimum accessibility of all important components for checking fill levels
  • Quick implementation of service work thanks to vertically mounted filters and additional maintenance openings
Optimum accessibility of all important components for checking the liquid levels

All-wheel steering

  • High stability even at full steering lock thanks to the undivided frame
  • Maximum maneuverability thanks to steering angles of up to 40° on both the front and rear axles
  • Consistent payload independent of the steering angle for constant leverage ratios
The all-wheel steering of the 8 series from Kramer.

Further Highlights

The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Combined brake-inch pedal

  • Simple and safe operation thanks to combined brake-inch pedal
  • Wear-free regulation of the working speed even at high engine speeds
  • Maximum working hydraulics even at low working speeds
Easy and quick coupling and uncoupling of attachments

Pressure relief 3. Steering committee

  • Quick and easy coupling and uncoupling of attachments with additional hydraulic functions while the engine is running
  • Convenient pressure relief thanks to optimally positioned button on the loading system
  • Saves time when changing hydraulically operated attachments
Less strain due to the automatic activation of the load stabiliser at high speeds

Load stabilizer with three operating modes

  • Gentle operation thanks to automatic activation of the load stabilizer at high speeds
  • Automatic deactivation at low speed for precise control of the charging system
  • Relieving the operator with the automatic function
Comfortable feeling of space due to wide glass surfaces

Panoramic glazing

  • Optimum visibility over the entire lifting range
  • Pleasant feeling of space thanks to generous glass surfaces
The front wheel steering of the 8 Series from Kramer.

Front axle steering

  • Safe and familiar road travel at high speed
  • Precise guidance of special attachments
  • Easy maneuvering in trailer mode
  • Please note that the product range may vary depending on the country.

  • The technical data of the products may vary accordingly with the selection of different options.

Downloads

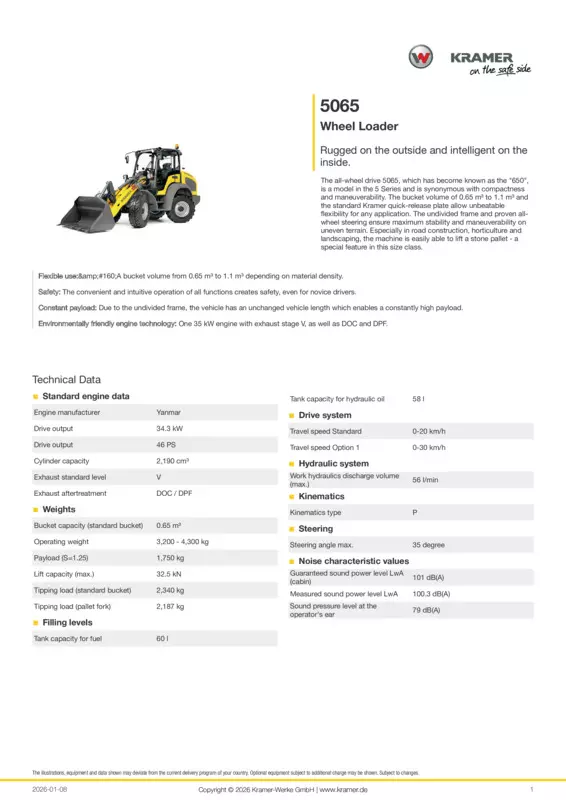

Brochure The wheel and telescopic wheel loaders 5035/5040/5050/5055 /5065/5065T/5065e
