The Kramer wheel loader 5075 while transporting a stone pallet.

Wheel Loader 5075 - The rugged champion.

The Kramer 5075 is a compact and maneuverable 5-series wheel loader. The machine impresses with its dynamic all-wheel drive, high payload and low dead weight. With the specially shaped loading system and the P-kinematics, unloading from the second row is possible without any problems. The cabin, designed for functionality, enables safe operation of the most important work functions with the aid of a backlit keypad.

Wheel Loader 5075

Benefits at a glance

  • Automatic load stabilizer: The optional automatic load stabilizer ensures optimum comfort for man and machine.
  • Long loading system: An application-oriented lifting height due to optionally extended loading system.
  • Flexible use: A bucket volume from 0.75 m³ to 1.1 m³ depending on material density.
  • Exhaust gas stage V: Exhaust gas aftertreatment is provided by DOC and DPF.
  • Maneuverability: The 2 x 40° steering angle means minimum turning radius and maneuverability in the smallest area.


360° visibility

  • Excellent all-round visibility thanks to large glass areas and narrow cab pillars
  • Panoramic front window for an optimal view of the attachment
Kramer wheel loaders have 360° all-round visibility.

Color-coded switches

  • Uniformed color scheme for hydraulic, electric, driving, and safety features
  • Increased safety due to minimized danger of mixing up switches
  • Operating concept that reaches across all models to simplify the handling of the fleet

Smart Attach (fully hydraulic quickhitch system)

  • Coupling of hydraulically driven attachments with the automatic connection of the hydraulic circuit, without the need to get out and in
  • Increased productivity as a result of cost and time savings
  • Attachments changed within seconds for full flexibility
Smart Attach of the 8 series from Kramer.

Easy maintenance access

  • Easy access to the engine compartment thanks to the wide-opening hood
  • Optimum accessibility of all important components for checking fill levels
  • Quick implementation of service work thanks to vertically mounted filters and additional maintenance openings
Easy access to the engine compartment

All-wheel steering

  • High stability even at full steering lock thanks to the undivided frame
  • Maximum maneuverability thanks to steering angles of up to 40° on both the front and rear axles
  • Consistent payload independent of the steering angle for constant leverage ratios
The all-wheel steering of the 8 series from Kramer.

Further Highlights

The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Combined brake-inch pedal

  • Simple and safe operation thanks to combined brake-inch pedal
  • Wear-free regulation of the working speed even at high engine speeds
  • Maximum working hydraulics even at low working speeds
Easy coupling and uncoupling of attachments

Pressure relief 3. Steering committee

  • Quick and easy coupling and uncoupling of attachments with additional hydraulic functions while the engine is running
  • Convenient pressure relief thanks to optimally positioned button on the loading system
  • Saves time when changing hydraulically operated attachments
The Kramer wheel loader 5085 while having a road trip.

Fast gear 30 km/h

  • Time savings due to higher final speed
  • Allows for quick transfer trips between nearby job sites
  • Stepless acceleration from 0 to 30 km/h
Relieve the driver through automatic function

Load stabilizer with three operating modes

  • Gentle operation thanks to automatic activation of the load stabilizer at high speeds
  • Automatic deactivation at low speed for precise control of the charging system
  • Relieving the operator with the automatic function
Comfortable feeling of space due to wide glass surfaces

Panoramic glazing

  • Optimum visibility over the entire lifting range
  • Pleasant feeling of space thanks to generous glass surfaces
The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Suspended pedals

  • Easy cleaning of the cabin floor due to free space underneath the pedals
  • Increased ease of use thanks to ergonomic pedal arrangement
  • One-piece, removable doormat makes cleaning easier
The front wheel steering of the 8 Series from Kramer.

Front axle steering

  • Safe and familiar road travel at high speed
  • Precise guidance of special attachments
  • Easy maneuvering in trailer mode
The crab steering of the 8 series from Kramer.

Crab steering

  • Easy maneuvering in confined spaces
  • Gentle driving on sensitive surfaces
  • Simple control in combination with special attachments
  • Please note that the product range may vary depending on the country.

  • The technical data of the products may vary accordingly with the selection of different options.


Brochure The wheel loaders 5075 /5085 / 5095


Brochure Produktübersicht Product overview

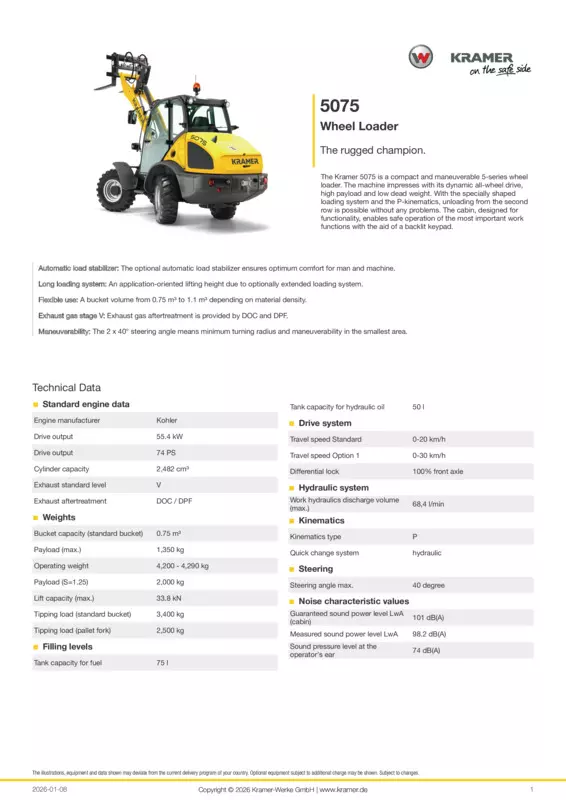

PI Sheet 5075
