The compact 5040 while transporting stones.

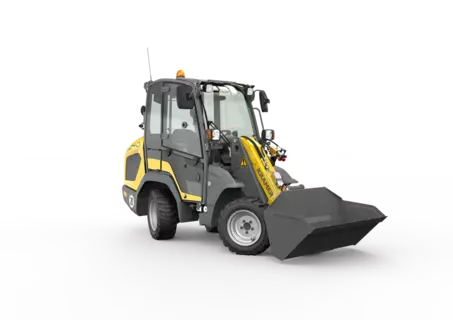

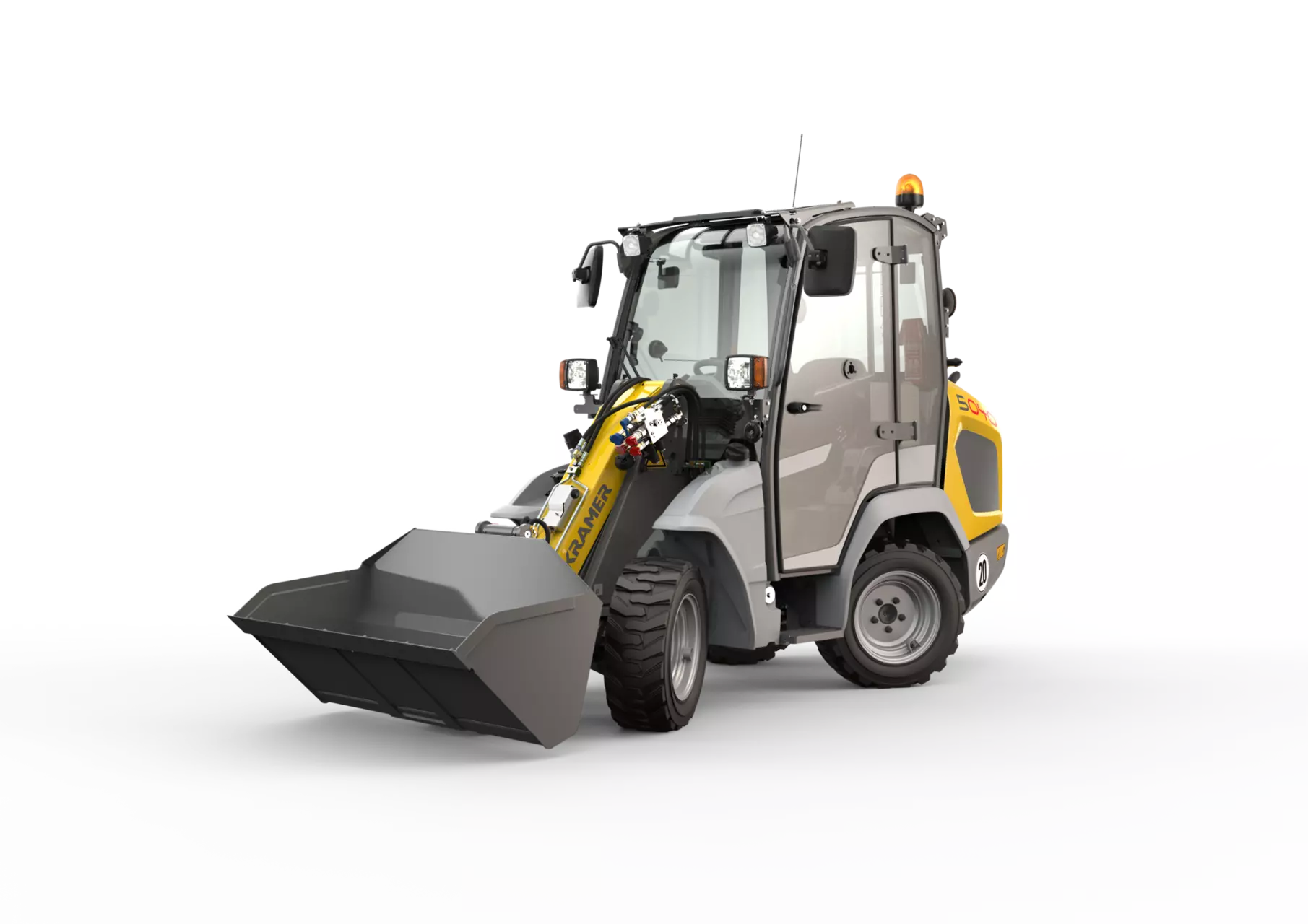

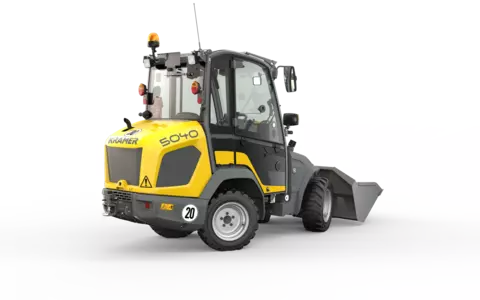

Wheel Loader 5040 - The energy package with best dimensions.

The wheel loader model 5040 is equipped as standard with a 28.5 kW / 38.8 hp Yanmar engine. Exhaust gas aftertreatment is provided by DOC and DPF. In addition, Smart Driving PRO is optionally available for the all-wheel steer wheel loader. This is a feature with three different driving modes that support and relieve the driver in the respective applications and are also fuel-saving. Combined with the narrow width of 1.26 m, this makes the 5040 the ideal companion for road construction, civil engineering, landscaping and gardening.

Wheel Loader 5040

Benefits at a glance

  • Smart Driving Pro: An optional feature with three different driving modes that support and relieve the driver in the respective applications and are also fuel-efficient.
  • Modern cabin design: The wide pedal step makes getting on and off even more convenient.
  • Functional side console: Thoughtfully designed from the ground up, the side console contains numerous storage compartments in addition to many functional and ergonomic features.
  • Convincing performance data: The working hydraulics with 30 l/min and Powerflow (optional) with 60l/min ensure fast working cycles and the air conditioning provides the necessary comfort.
  • Bluetooth radio: The optional radio is equipped with USB port and hands-free.

Highlights

360° visibility

  • Excellent all-round visibility thanks to large glass areas and narrow cab pillars
  • Panoramic front window for an optimal view of the attachment
Kramer wheel loaders have 360° all-round visibility.

Low cabin

  • With a height of 2.02 m, optimal application in areas with restricted clearance
  • There is the option to have a canopy or closed cabin
Optimal use for limited passageways

Color-coded switches

  • Uniformed color scheme for hydraulic, electric, driving, and safety features
  • Increased safety due to minimized danger of mixing up switches
  • Operating concept that reaches across all models to simplify the handling of the fleet
5040

Easy maintenance access

  • Easy access to the engine compartment thanks to the wide-opening hood
  • Optimum accessibility of all important components for checking fill levels
  • Quick implementation of service work thanks to vertically mounted filters and additional maintenance openings
Optimum accessibility of all important components for checking the liquid levels

All-wheel steering

  • High stability even at full steering lock thanks to the undivided frame
  • Maximum maneuverability thanks to steering angles of up to 40° on both the front and rear axles
  • Consistent payload independent of the steering angle for constant leverage ratios
The all-wheel steering of the 8 series from Kramer.

Further Highlights

The suspended pedals with the combined brake-inch pedal allow for precise manoeuvring, even at high engine speed.

Combined brake-inch pedal

  • Simple and safe operation thanks to combined brake-inch pedal
  • Wear-free regulation of the working speed even at high engine speeds
  • Maximum working hydraulics even at low working speeds
Quick coupling and uncoupling of attachments

Pressure relief 3. Steering committee

  • Quick and easy coupling and uncoupling of attachments with additional hydraulic functions while the engine is running
  • Convenient pressure relief thanks to optimally positioned button on the loading system
  • Saves time when changing hydraulically operated attachments
Less strain due to the automatic activation of the load stabiliser at high speeds

Load stabilizer with three operating modes

  • Gentle operation thanks to automatic activation of the load stabilizer at high speeds
  • Automatic deactivation at low speed for precise control of the charging system
  • Relieving the operator with the automatic function
Comfortable feeling of space due to wide glass surfaces

Panoramic glazing

  • Optimum visibility over the entire lifting range
  • Pleasant feeling of space thanks to generous glass surfaces
The front wheel steering of the 8 Series from Kramer.

Front axle steering

  • Safe and familiar road travel at high speed
  • Precise guidance of special attachments
  • Easy maneuvering in trailer mode
The crab steering of the 8 series from Kramer.

Crab steering

  • Easy maneuvering in confined spaces
  • Gentle driving on sensitive surfaces
  • Simple control in combination with special attachments
  • Please note that the product range may vary depending on the country.

  • The technical data of the products may vary accordingly with the selection of different options.

Downloads

Brochure The wheel and telescopic wheel loaders 5035/5040/5050/5055 /5065/5065T/5065e

Download

Brochure Produktübersicht Product overview

Download

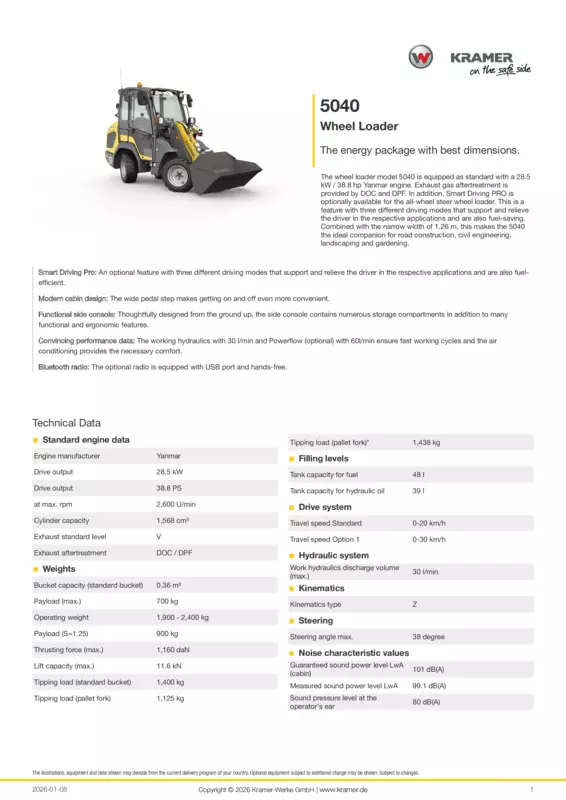

PI Sheet 5040
